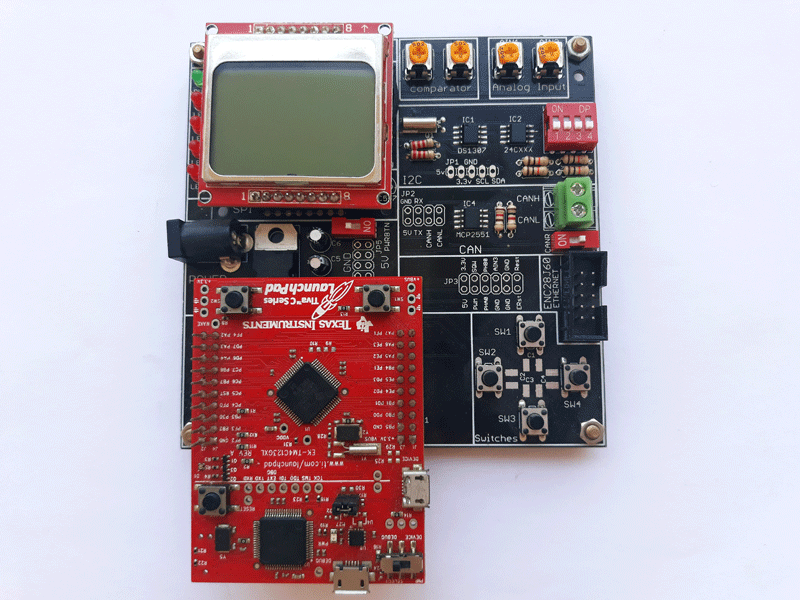

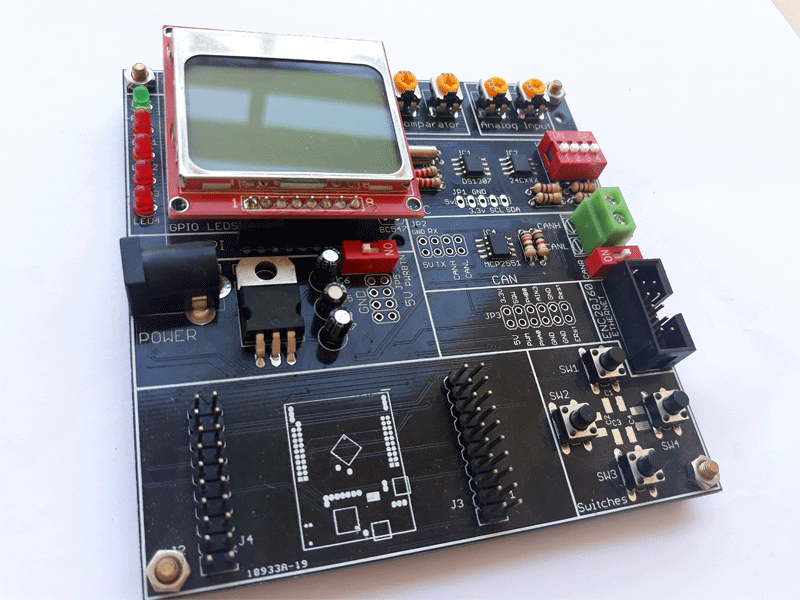

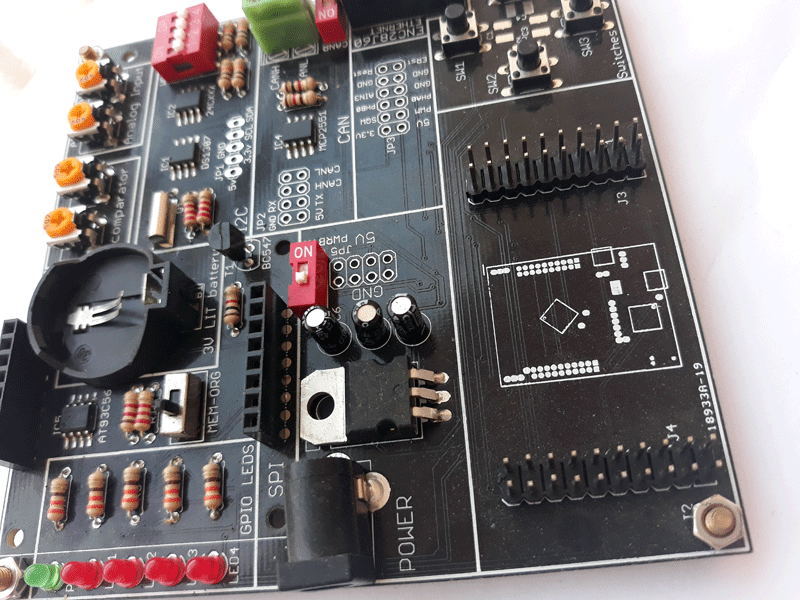

EddeMotive for TI Tiva C
ED-TITC-MOT-EELC100
EddeMotive contains all you want to start an automotive embedded systems development. Say goodbye to the breadboards and it's spaghetti-like flying wires. Now all you need to do is to connect your Tiva C and use its powerful On-board In-Circuit Debug Interface (ICDI).
- Fully compatible with Texas Instruments Tiva C TM4C123G
- 1 x MCP2551 CAN transceiver
- 1 x I2C RTC DS1307
- 1 x I2C 256Kb EEPROM AT24C256 with configurable address
- 1 x SPI 1K high speed EEPROM 93C46
- 1 x Connector pin headers for GLCD Nokia5510 - Module is not supplied
- 1 x Connector port for ENC28J60 Ethernet module - Module is not supplied
- 4 x Red leds
- 2 x Potentiometer connected to analog inputs
- 2 x Potentiometer connected to compactor inputs
- 4 x Push buttons
- 1 x External power circuit for EddeMotive and Tiva C - External Power supply is not supplied
Software and Documents:
TI Tiva™ C Series TM4C123x ROM user's guide
High-Speed CAN Transceiver MCP2551 datasheet
DS1307, 64 x 8, Serial, I²C Real-Time Clock
AT24C256, Two-wire Serial EEPROM (32,768 x 8)
AT93C46, Three-wire Serial EEPROM (128 x 8)
PCD8544, 48 x 84 pixels matrix LCD controler/driver (Nokia5510 GLCD)
ENC28J60, Stand-Alone Ethernet Controller With SPI Interface
